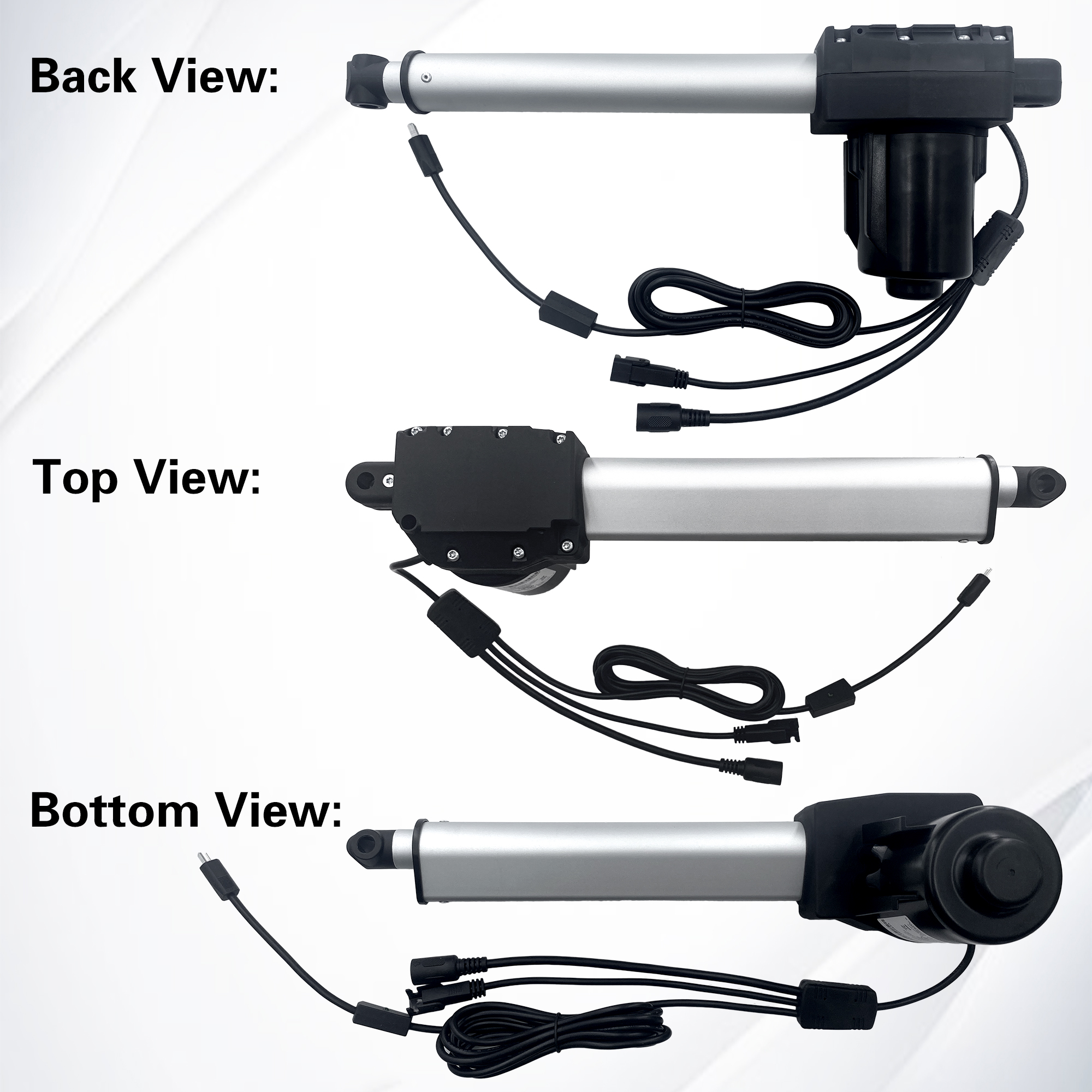

Richmat HJA58 Lift Chair Motor Replacement Replacing GM1450-LM Actuator for Recliner Lift Chairs Electric Sofa

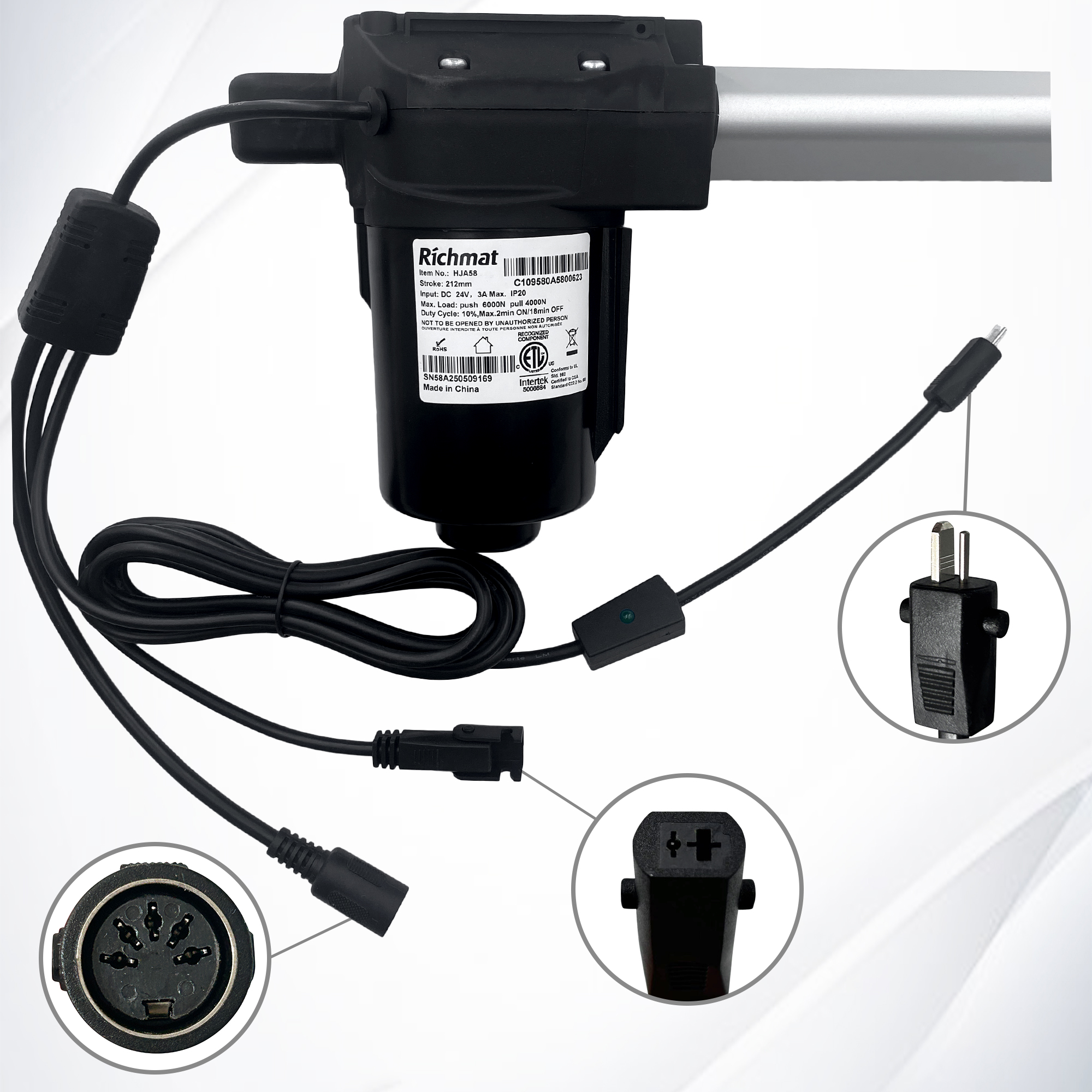

<p>This Richmat HJA58 actuator motor replacing GM1450-LM actuator motor replacement. It has three Plugs, a 2-pin male plug for the power supply, a 2-pin female plug for the deputy motor, and a 5-pin round plug for the remote control. Please note that replacement is only possible if all plug ends match exactly. This motor is compatible with chair models including UC550-JPT, UC550-M, UC556-SME, UC556-MLA, UC520-M, UC792, and UC680-M. Please be aware that it is NOT compatible with the UC550-L model.</p><p><br></p><p>Before purchasing, it is crucial to verify that your original motor's technical specifications—such as stroke and minimum install size. Please note: There are multiple versions of the HJA58 motor, which may differ in plug configuration, stroke, and install size. If any specification differs, this unit will not be a suitable replacement, even if the base model number is the same.</p><p><br></p><p>Technical data:</p><p>Model: HJA58 GM1450-LM</p><p>Stroke: 212mm/8.35 inches</p><p>Minimum install size: 394mm/15.51 inches</p><p>Max. Load: push 6000N, pull 4000N</p><p>Package Dimensions: 24.8 x 7.0 x 4.2 inches</p><p>Package Weight: 5.1 pounds</p>

• ‌This is Richmat Model HJA58 Replacing GM1450-LM Actuator Motor ReplacementThree Plugs, the 2 Pin Male Plug connects to the Power Supply, the 2 pin Female Plug connects to the Deputy Motor, the 5 Pin round Plug connects to the Remote, if the End is different, it will not be replacedThis Motor is compatible with the following Chair models: UC550-JPT, UC550-M, UC556-SME, UC556-MLA, UC520-M, UC792, UC680-M, can't replce UC550-LStroke: 212mm/8.35inches, Minimum install size: 394mm/15.51inches, Max. Load: push 6000N, pull 4000NPlease confirm whether the technical data are the same as your motor, if the model is the same but the stroke or minimum install size are different, it cannot be replaced
• Three Plugs, the 2 Pin Male Plug connects to the Power Supply, the 2 pin Female Plug connects to the Deputy Motor, the 5 Pin round Plug connects to the Remote, if the End is different, it will not be replaced
• This Motor is compatible with the following Chair models: UC550-JPT, UC550-M, UC556-SME, UC556-MLA, UC520-M, UC792, UC680-M, can't replce UC550-L
• Stroke: 212mm/8.35inches, Minimum install size: 394mm/15.51inches, Max. Load: push 6000N, pull 4000N
• Please confirm whether the technical data are the same as your motor, if the model is the same but the stroke or minimum install size are different, it cannot be replaced
